ESENZ INNOVATIONS

PRIVATE LIMITED

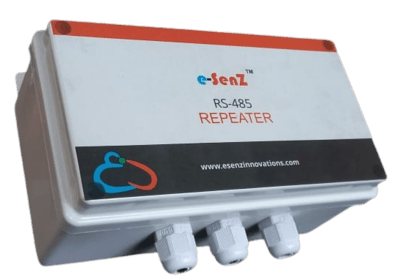

RS485 SPLITTER | REPEATER

product brochure

MODBUS SIGNAL SPLITTER & AMPLIFIER
CONNECT TWO MASTER FOR SINGLE SLAVE

Reduce The Electrical Noise in Modbus Line.

Amplify The Modbusbus Signal for Long Distance Wiring

Connect Two Master for Single Slave

ACCESSORIES
product brochure

RS485 SPD
PROTECT FROM RS485 LINE SURGE

Surge Protection : 150V
Current Limit: 75mA

IP65: 80x100x50 mm
Din Rail Casing: 25x120x80 mm

product brochure

OVER VOLTAGE PROTECTION
POWER SPD

320V Protection

Suitable for 50/60 HZ.

High Voltage Protection Device

Response Time <25 ns

product brochure

SURGE SHIELD
PRE ASSEMBLED PROTECTION KIT

Power SPD: 255V

RS485 SPD: 7.5V, 75mA, Surge 150V

Surge Shield: 180x270x100 mm

Surge Shield Mini:

product brochure

RPD/RPR
REVERSE POWER PROTECTION DEVICE

Make –EAPL

Input Voltage: 85-270V AC
Input Frquency: 50/60 Hz +/- 5%

Trip Time: +/- 1% of set delay +/-2Sec

Size: 76x78x115( WxHXD)

product brochure

RS485 CABLES
Shielded / Non Shielded

RS485 CABLES
size : 0.5 /0.25 Sq mm

with shielding
without shielding

product brochure

OFC
Optical Fiber Cables

Optical Fiber Cables

product brochure
Signal Converter

SIGNAL CONVERTERS
Ethernet Converters

TCP-IP to RS485 & Vice Versa

Analog to TCP-IP

product brochure

MULTI FUNCTION METER
Unidirectional & Bidirectional MFM

Make –EAPL

AC 3ph BiDirectional MFM with RS485

DC MFM with RS485

AC 3ph UniDirectional MFM with RS485
